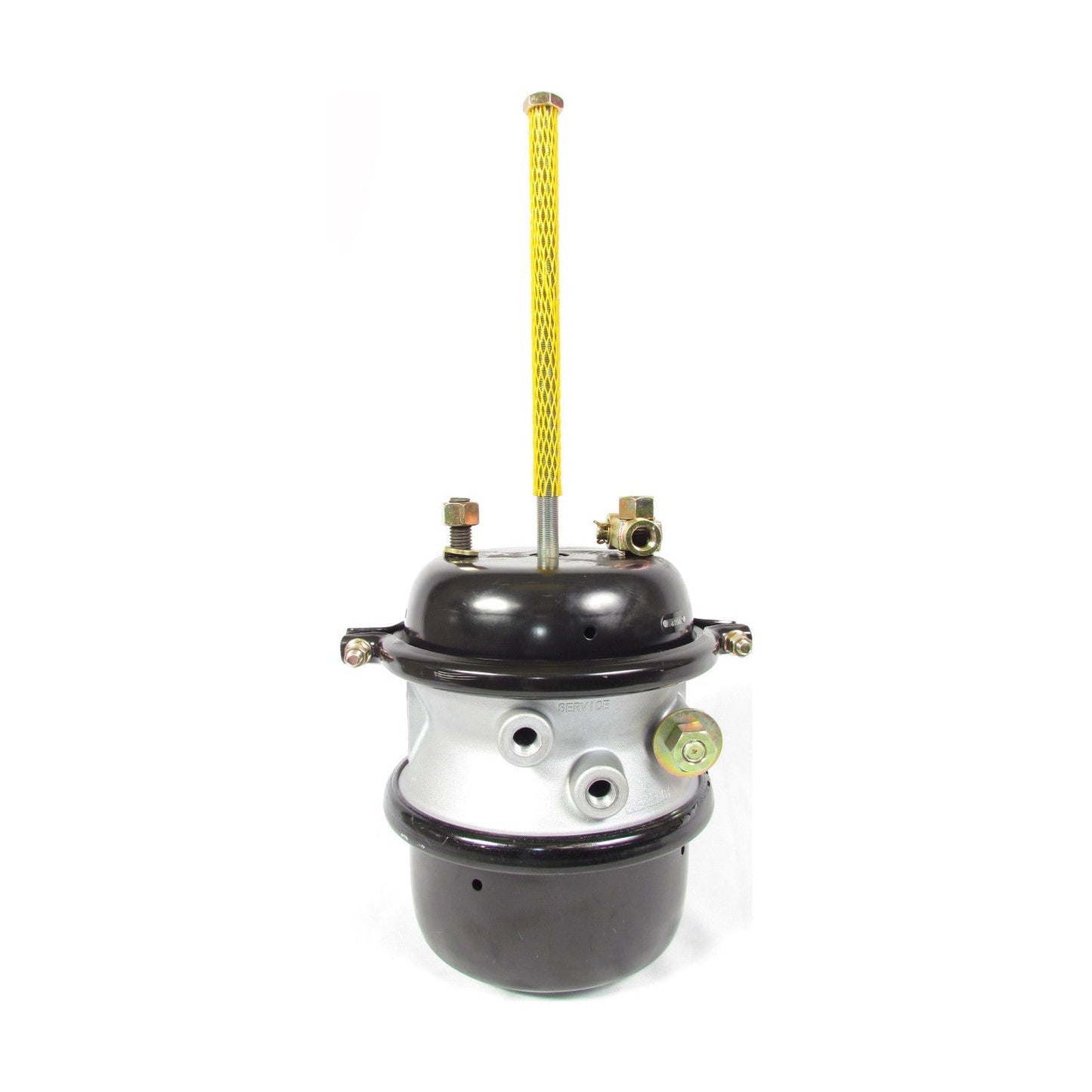

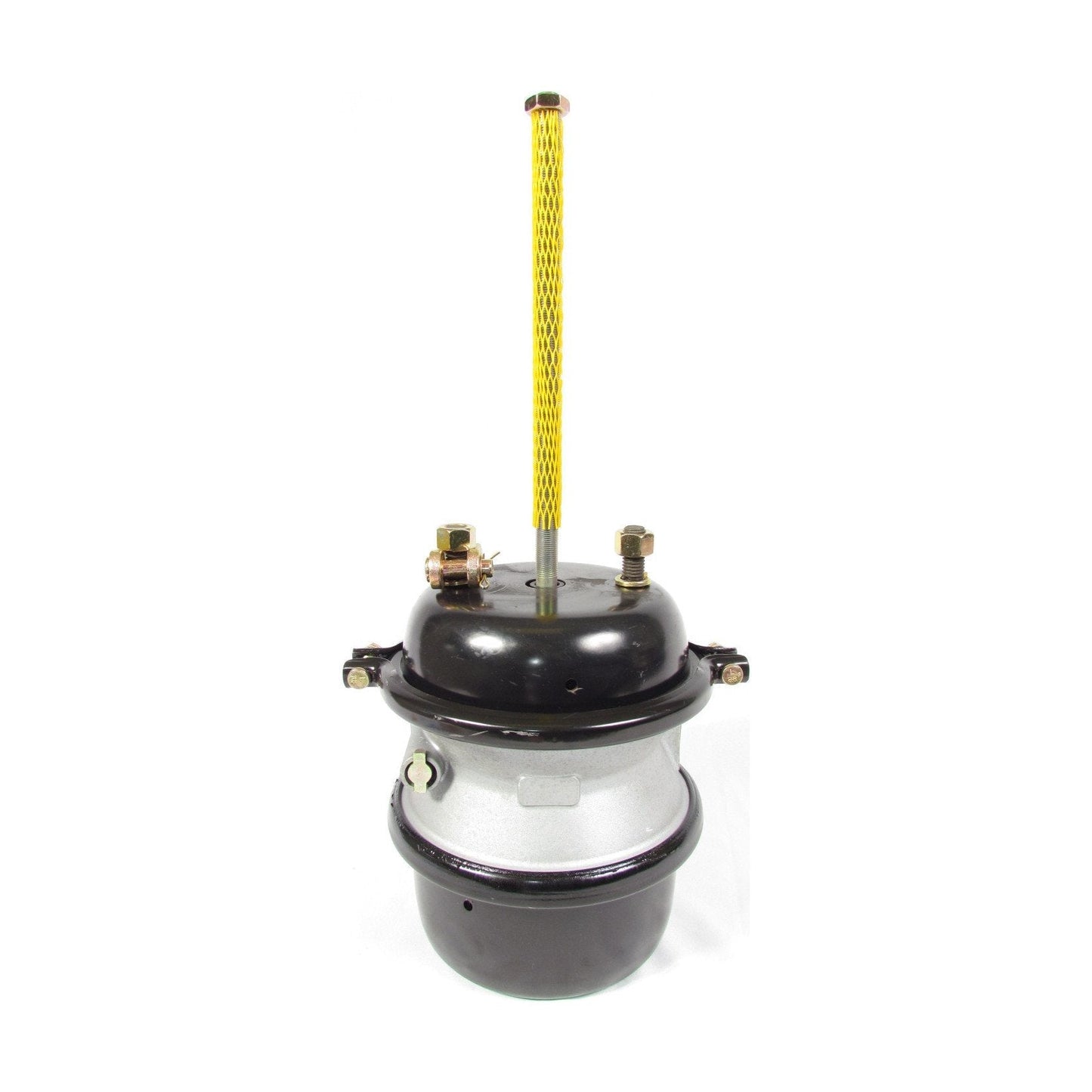

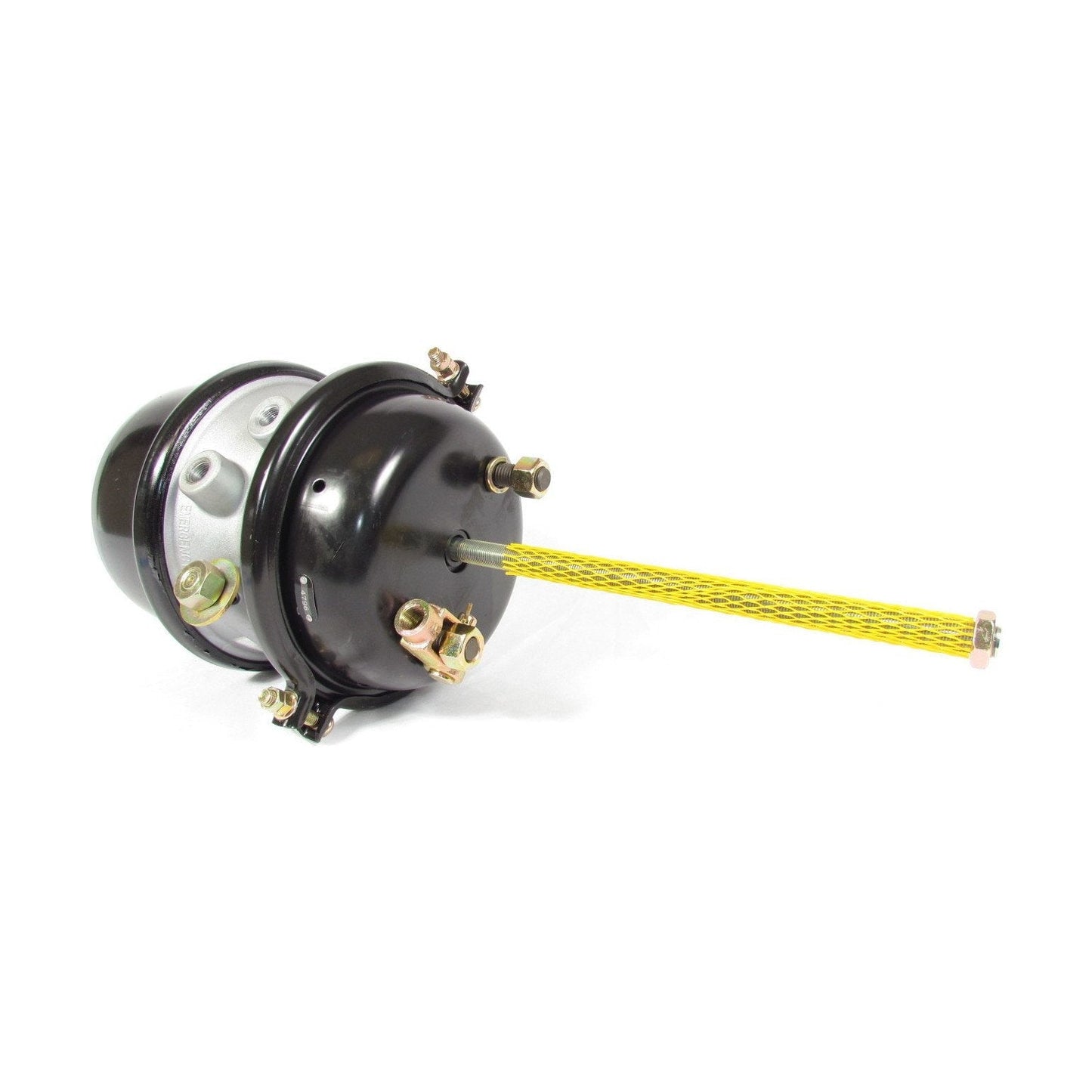

Type 36/36 Sealed Air Spring Brake Chamber - Threaded, Standard Stroke

Type 36/36 Sealed Air Spring Brake Chamber - Threaded, Standard Stroke

Fortpro

Regular price $93.77 USD
Regular price Sale price $93.77 USD
Sale Sold out
Shipping calculated at checkout.

SKU: SKU:F224796

Inventory: 17 in stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Revitalize, repair, upgrade, or enhance your Semi-Truck with Fortpro's latest aftermarket innovation: Type 36/36 Sealed Air Spring Brake Chamber - Threaded, Standard Stroke. Engineered for durability and optimized performance, it's the ultimate solution for enhancing your rig. Trust Fortpro for quality that delivers results.

Specifications

  • Part: Air Brake Chamber
  • Part Type: 36/36
  • Part Series: GoldSeal
  • Air Port Position: 90°
  • Air Port Thread Diameter: 3/8-18 NPT
  • Bracket to End of Spring Housing Length: 10.7"
  • Clevis: Threaded
  • Finish: Powder Coated
  • Thread Diameter: 5/8"-18 UNF
  • Push Rod Diameter: 5/8"
  • Push Rod Length: 9"
  • Service Chamber Size: 36/36
  • Stroke Type: Standard
  • Stroke Length: 3"
  • Stud Distance: 4 3/4"
  • Notes: Sealed

Cross-References

  • Automann: 179.SB3636
  • Bendix: 800833, 5007134
  • Euclid: E-GC3636
  • Flagg: 3636GC
  • Haldex: GC3636

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test

Dimensions

Dimension Not Available.
