Air Spring for Mack Replaces 9375, 1R12-404
Air Spring for Mack Replaces 9375, 1R12-404
SKU: SKU:F245581
Inventory: More than 50 in Stock
Shipping: Calculated at Checkout
Shipping Policy
Shipping Policy
In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.
For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.
Return Policy
Return Policy
If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.
To start a return, use our Contact Form.
Share
*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.
Product Data Sheet
Description

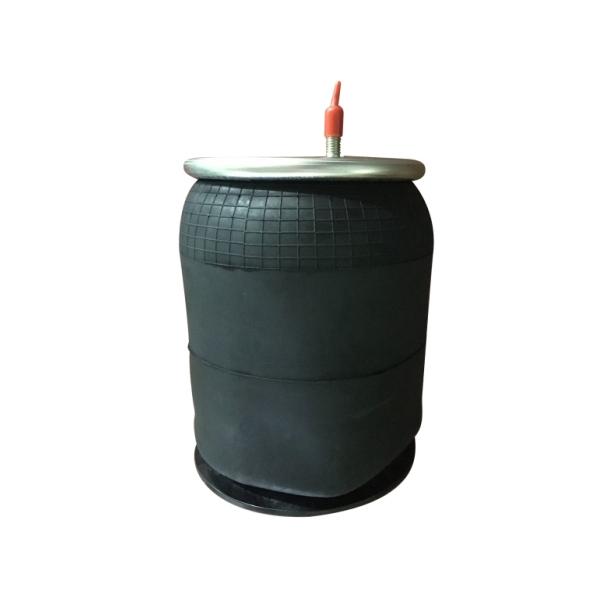

Fortpro Air Springs F245581 is an air suspension solution with a strong design and made with high quality materials. They offer greater load capacity, flexibility, stability and driving comfort. Plus, they're easy to install and maintain, making them a reliable and long-lasting option for upgrading your commercial vehicle suspension.
Specifications
- Brand: Fortpro
- Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: 9375, W01-358-9375, W01-358-9375
- Position: Primary Truck & Trailer Axle
- Air Spring Style: 1T Reversible Sleeve
- Piston Type: Composite

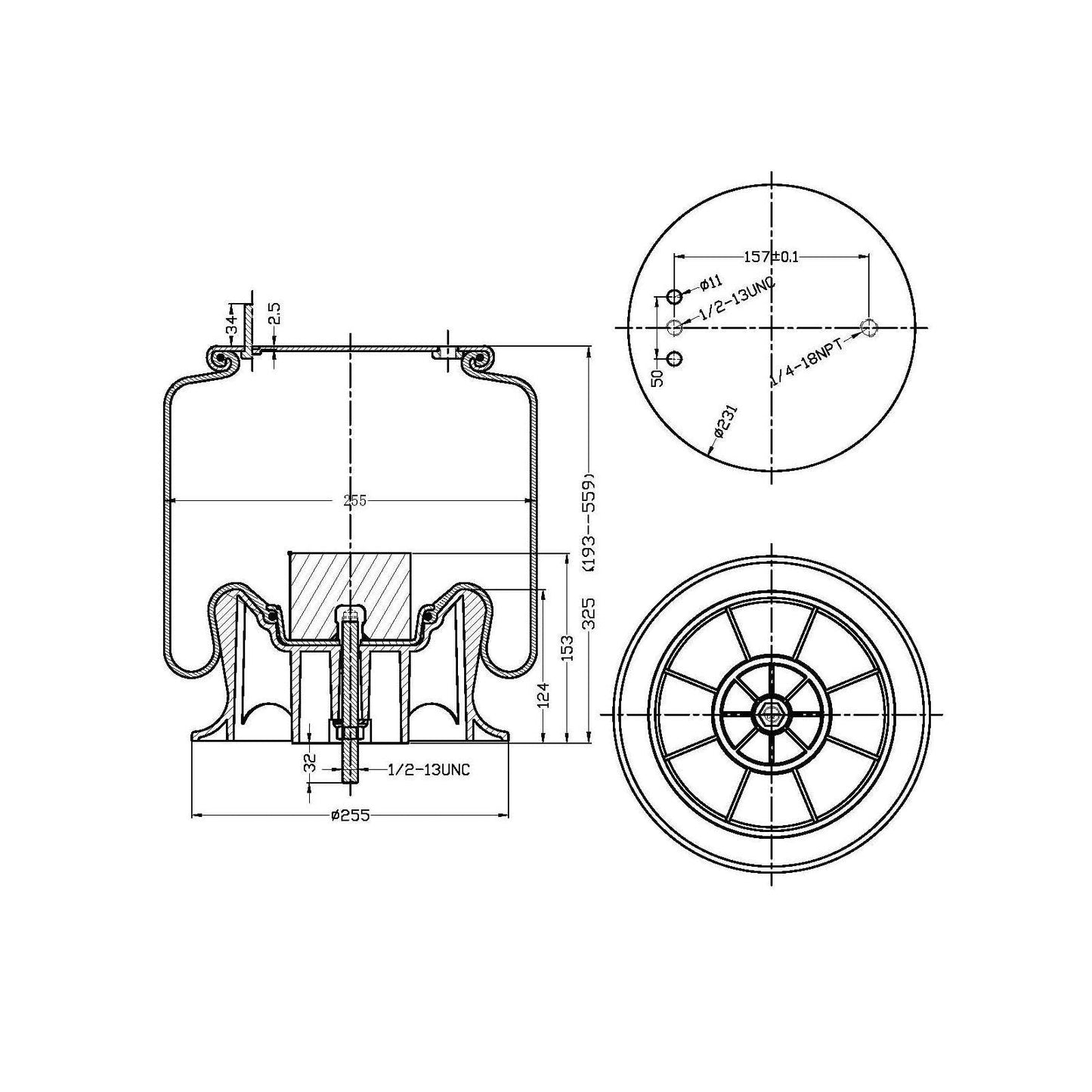

- Bead Plate Diameter Bottom: 10.00"
- Bead Plate Diameter Top: 9.00"
- Collapsed Height: 8.10"
- Max. Height: 22.00"
- Part Diameter: 10.12"
- Piston Height: 4.85"
- Stud Configuration - Bottom: 1
- Stud Configuration - Top: 2
- Application: Hendrickson, Mack
- VMRS: 016-008-000
Cross-References
- Automann: AB1DK23M9375
- Contitech: 910175P451, 910185P451(BK)
- Dayton Parts Batco: 1R121076, 1R12404, 3529375, 50899002L
- Firestone: 9375, W013589375
- Goodyear: 1R12404, 1R12404, 1R12488, 1S12030, 1S12031
- Hendrickson: 50899001, 50899002
- Mack: 364QS27, 57QL414M
