Product Data Sheet
Description

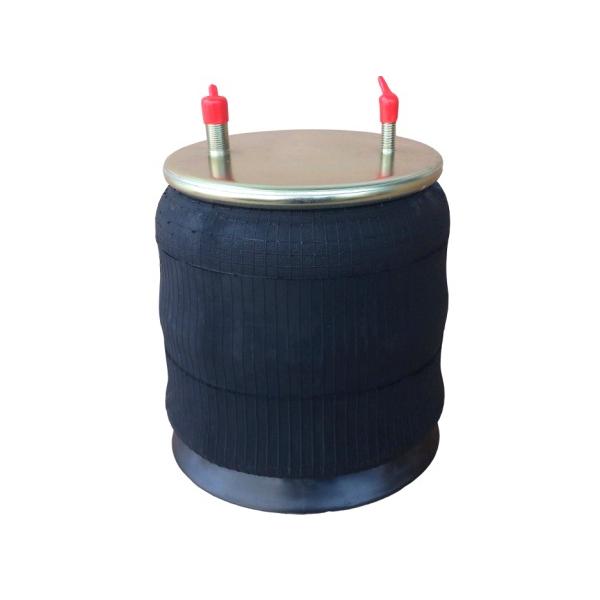

Fortpro Air Spring F245583 is a type of air suspension used in commercial vehicles. These air springs are designed with high-quality, heavy-duty materials such as synthetic rubber and steel, making them durable and reliable.

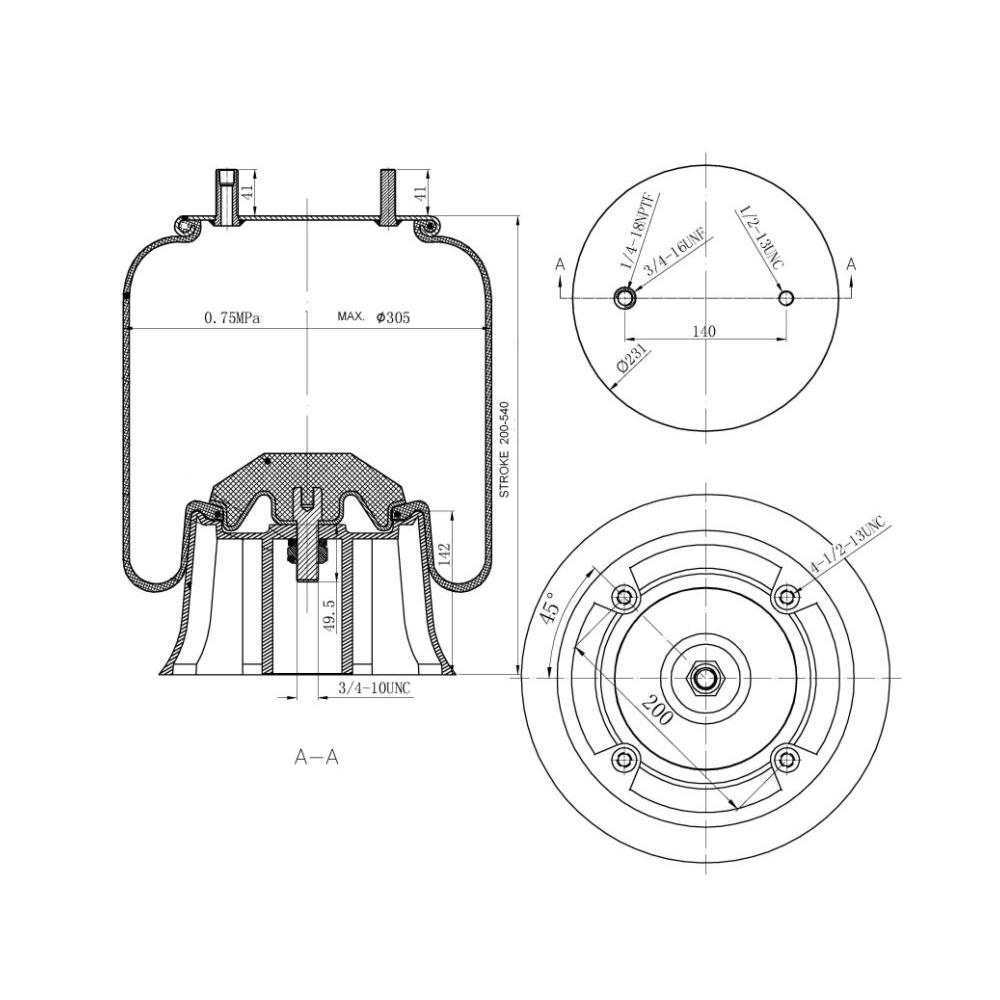

Specifications
- Brand: Fortpro
- Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: 9082, W01-358-9082, W013589082
- Position: Primary Truck & Trailer Axle
- Air Spring Style: 1T Reversible Sleeve
- Piston Type: Composite
- Bead Plate Diameter Bottom: 10.25"
- Bead Plate Diameter Top: 9.00"
- Collapsed Height: 7.90"
- Max. Height: 20.75"
- Part Diameter: 10.12"
- Piston Height: 5.68"
- Stud Configuration - Bottom: 4
- Stud Configuration - Top: 2
- Application: Hendrickson Canada; Kelderman; Hutchens; Holland (Neway); Reyco; R & S Truck & Body; Ridewe
- VMRS: 016-008-000
Cross-References
- Automann: 566CT64269, AB1DK23K9082
- Contitech: 91016P310, 91016P310
- Dayton Parts Batco: 1R12092, 1R12093, 1R12509, 3529082
- Firestone: 0646, 1T15K1, 1T15M6, 646, 9082, 9084, W013589082
- Goodyear: 1R11917, 1R12092, 1R12092, 1R12093, 1R12093, 1R12134, 1R12134, 1R12509, 1R12677, 1R12677, 1R13097
- Haldex: CS112092
- Hendrickson: 365147, 9082, B2066, S4041
