• F245594 | DVP AIR SPRING 1R14-152, S-25319
  • F245594 | DVP AIR SPRING 1R14-152, S-25319
1 2

Air Spring Replaces 1R14-152, S-25319

Air Spring Replaces 1R14-152, S-25319

Fortpro

$194.12 USD
$194.12 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F245594

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

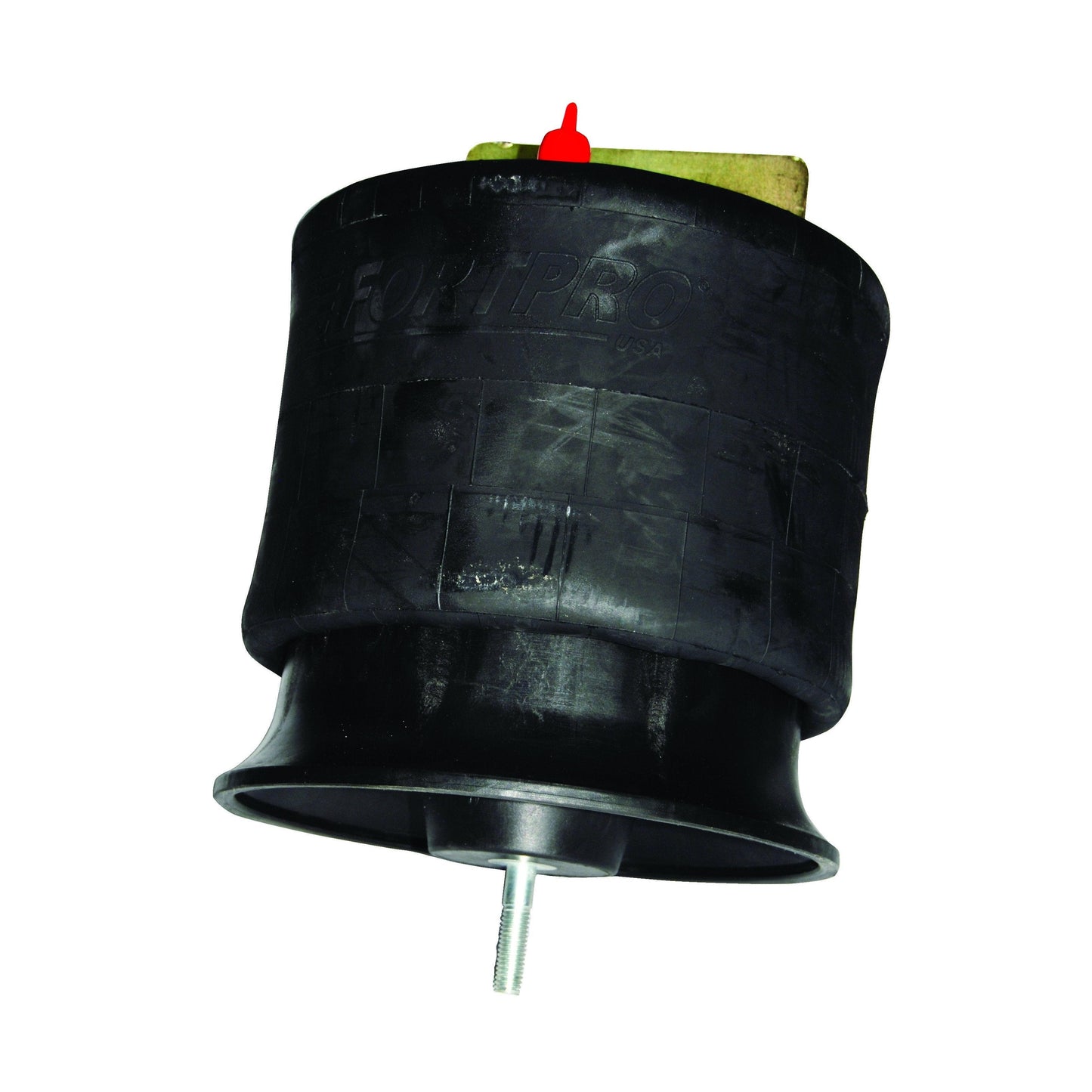

The Fortpro Air Spring F245594 is a high quality, heavy duty air suspension component for automotive vehicles. It stands out for its durability, load capacity and height adjustment. Improve comfort, stability and driving safety. It is the perfect choice for optimal performance in any situation.

Specifications

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 1R14-152
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Without Piston
  • Bead Plate Diameter Bottom: 11,13"
  • Bead Plate Diameter Top: 11,38"
  • Collapsed Height: 7,50"
  • Piston Height: 6.07"
  • Stud Configuration-Bottom: 4
  • Stud Configuration - Top: 2
  • Bottom Plate Type: Steel
  • Weight:: 22.7 lbs
  • VMRS: 016-008-000

Cross-References

  • Contitech: 75269
  • Goodyear: 1R14-152
  • Hendrickson: S-25319

Dimensions

Dimension Not Available.
