• F245645 | AIR SPRING 554787C1, 2B12-307, 7403 | Replace FAS-0714
  • F245645 | AIR SPRING 554787C1, 2B12-307, 7403 | Replace FAS-0714
  • F245645 | AIR SPRING 554787C1, 2B12-307, 7403 | Replace FAS-0714
1 3

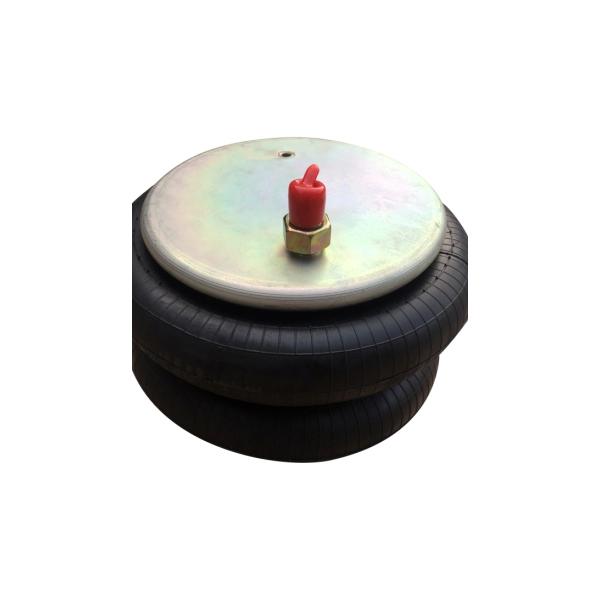

Double Convoluted Air Spring Replaces 554787C1, 2B12-307

Double Convoluted Air Spring Replaces 554787C1, 2B12-307

Fortpro

$129.22 USD
$129.22 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F245645

Inventory: 24 in stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Fortpro Double Convoluted Air Spring F245645 is a state-of-the-art air suspension component designed to deliver superior performance in a wide range of commercial and transportation applications. This double contoured air spring has been carefully designed and manufactured from high quality materials to ensure durability and reliability in demanding conditions. Fortpro Double Convoluted Air Spring F245645 offers exceptional load capacity and optimal cushioning from impacts on the road.

Specifications

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 7403, W013587403, W01-358-7403
  • Position: Auxiliary / Tag Axle
  • Air Spring Style: Convoluted
  • Bead Plate Diameter Bottom: 9.00"
  • Bead Plate Diameter Top: 9.00"
  • Min. Height: 4.20"
  • Part Diameter: 12.00"
  • Stud Configuration-Bottom: 2
  • Stud Configuration - Top: 2
  • Weight:: 14.38 lbs
  • Application: Granning 2725, Hendrickson Trailer S1159, S2883, Hendrickson Can. B-12514-001 R & S Truck & Body 1040201, Ridewell 1003587403C, Watson & Chalin AS-0007
  • VMRS: 016-008-000

Cross-References

  • Automann: 566CT64488, ABSP2B22R7403
  • Contitech: FD33022318
  • Dayton Parts Batco: 2B12307, 3547403, B1159
  • Firestone: 7403, W013587403, W01-358-7403
  • Flagg: 4318
  • Goodyear: 2B10307, 2B12307, 2B12307, 2B12433, 2B12445
  • Hendrickson: 1159, 365141, 7403, 7405, NA1060
  • Meritor: FS7403, MAF7403
  • Trailmobile: 3057007403, GY2B12307

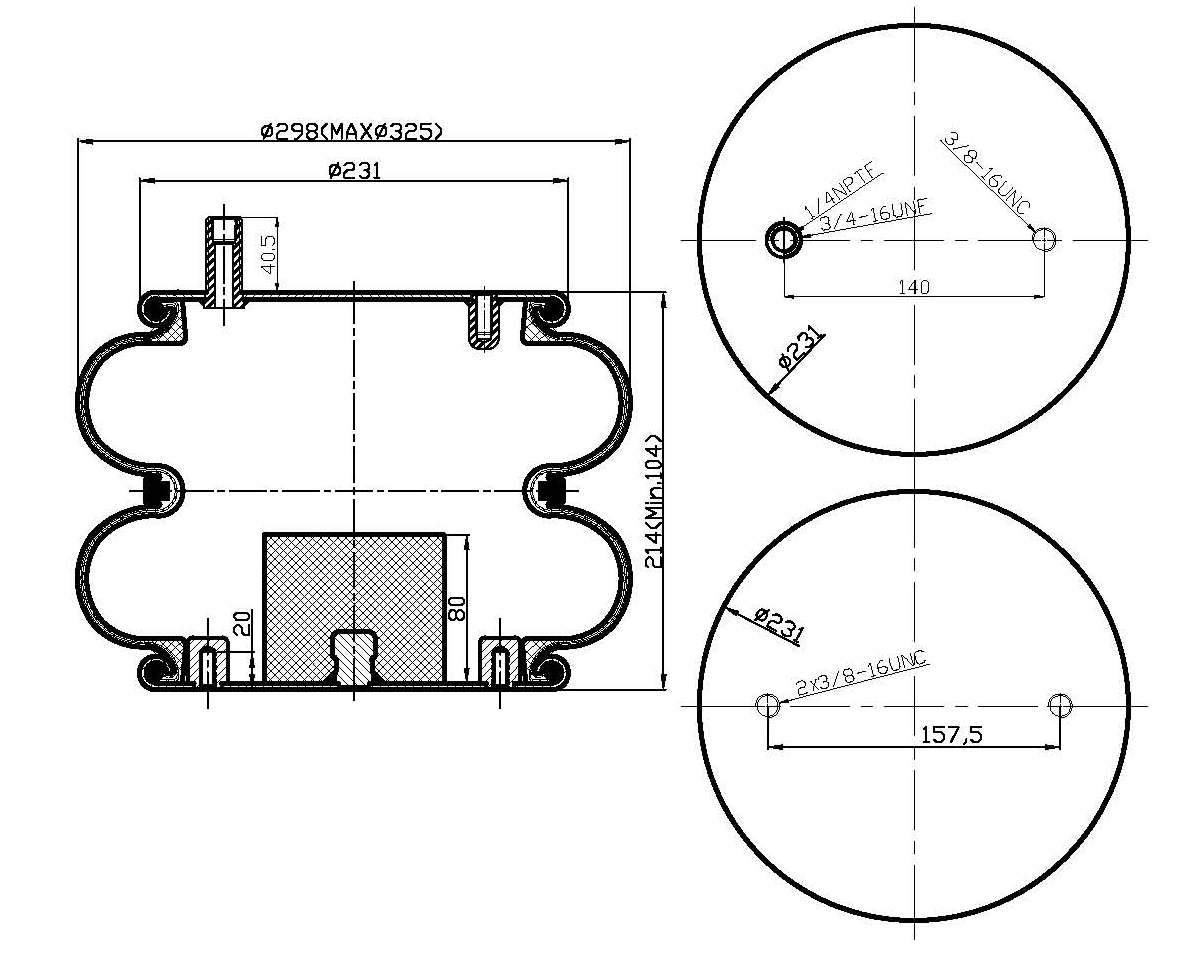

Dimensions

Dimension Not Available.
