• F245646 | AIR SPRING 7136, 554798C1, 2B14-356 | Replace FAS-0775
  • F245646 | AIR SPRING 7136, 554798C1, 2B14-356 | Replace FAS-0775
  • F245646 | AIR SPRING 7136, 554798C1, 2B14-356 | Replace FAS-0775
1 3

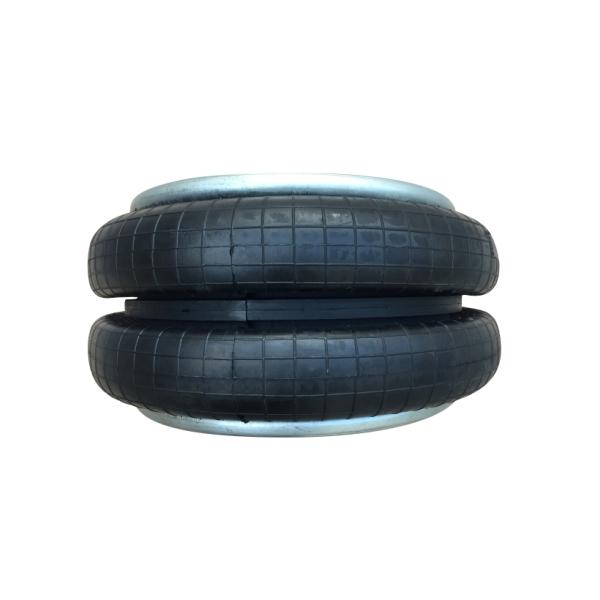

Double Convoluted Air Spring Replaces 7136, 554798C1

Double Convoluted Air Spring Replaces 7136, 554798C1

Fortpro

$125.80 USD
$125.80 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F245646

Inventory: 20 in stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Fortpro Double Convoluted Air Spring F245646 is a reliable choice for those seeking outstanding performance in heavy-duty vehicle suspension. With its durability, load capacity and enhanced comfort, this component offers a quality and efficient solution to meet the demanding challenges of the transportation industry.

Specifications

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 7136, W013587136, W01-358-7136
  • Position: Auxiliary / Tag Axle
  • Air Spring Style: Convoluted

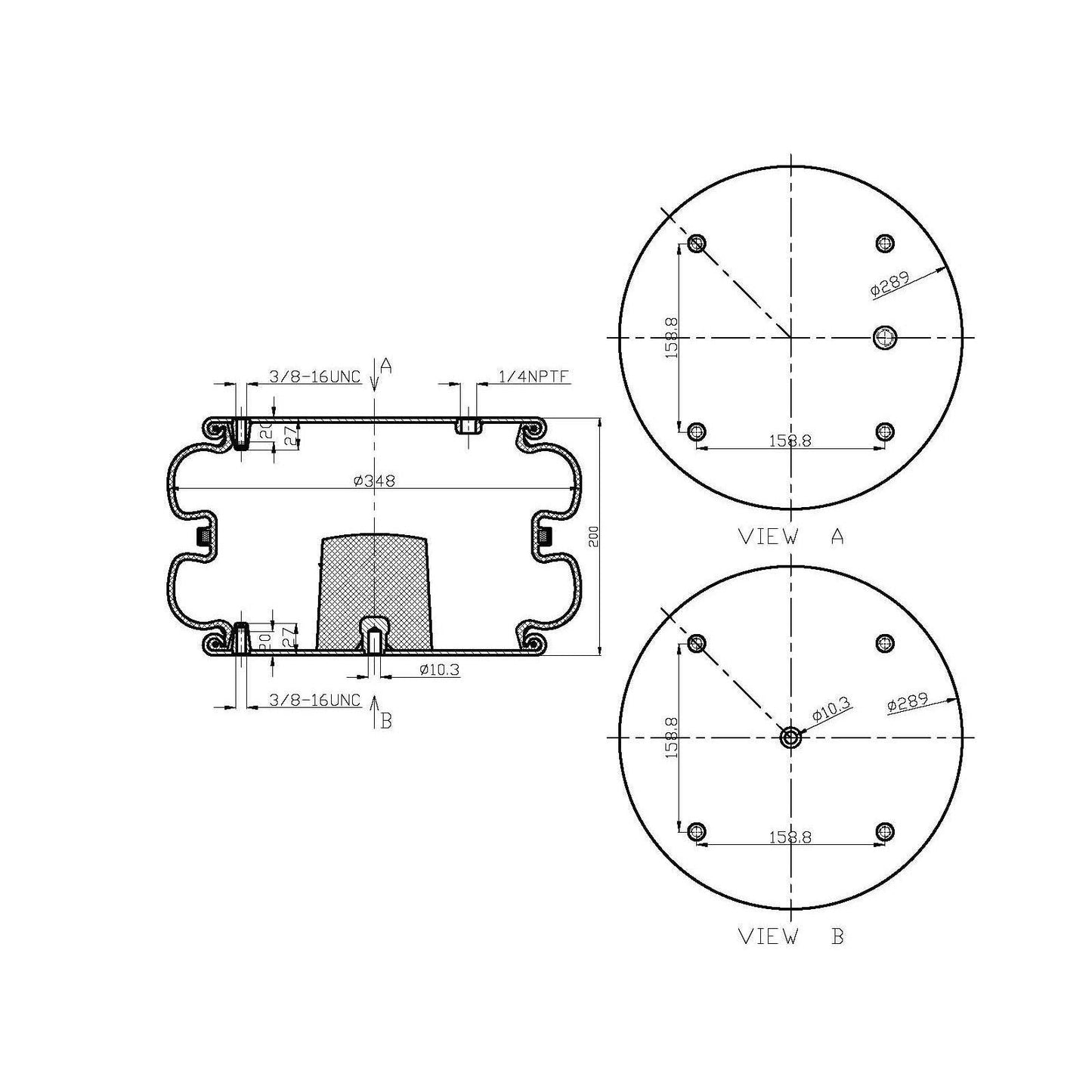

  • Bead Plate Diameter Bottom: 11.31"
  • Bead Plate Diameter Top: 11.31"
  • Min. Height: 3.80"
  • Part Diameter: 14.50"
  • Stud Configuration-Bottom: 4
  • Stud Configuration - Top: 5
  • Weight:: 22.09 lbs
  • Application: Fargo Trailer; Granning 1626; Hendrickson Trailer S1080; R & S Truck & Body 1027556; Ridewell 1003587136C; Watson & Chalin AS-0004
  • VMRS: 016-008-000

Cross-References

  • Automann: 566CT64545, ABSP2B34R7136
  • Contitech: FD53022321
  • Dayton Parts Batco: 2B14356, 3547136, S1080
  • Firestone: 7136, W013587136, W01-358-7136
  • Flagg: 4321
  • Goodyear: 2B14356, 2B14356, 2B14453
  • Meritor: FS7136, MAF7136
  • Trailmobile: GY2B14356
  • Volvo: 3130489

Dimensions

Dimension Not Available.
