• F286415 | 5TH WHEEL REPAIR KIT | Replace RK-351-A-L
1 1

5th Wheel Rebuild Kit for XA351,XA331, XA3500 Series Replaces RK351A02L

5th Wheel Rebuild Kit for XA351,XA331, XA3500 Series Replaces RK351A02L

Fortpro

$322.79 USD
$322.79 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F286415

Inventory: Low stock: 10 left

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Keep your Fifth Wheel in top shape with Fortpro's Repair Kit. Includes all the components you need for a secure and reliable connection between your Semi-Truck and Trailer.

Specifications

Specifications:

  • Brand: Fortpro
  • Part Type: 5th Wheel Rebuild Kit
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Application: XA351 Series, XA331 Series, XA3500 Series

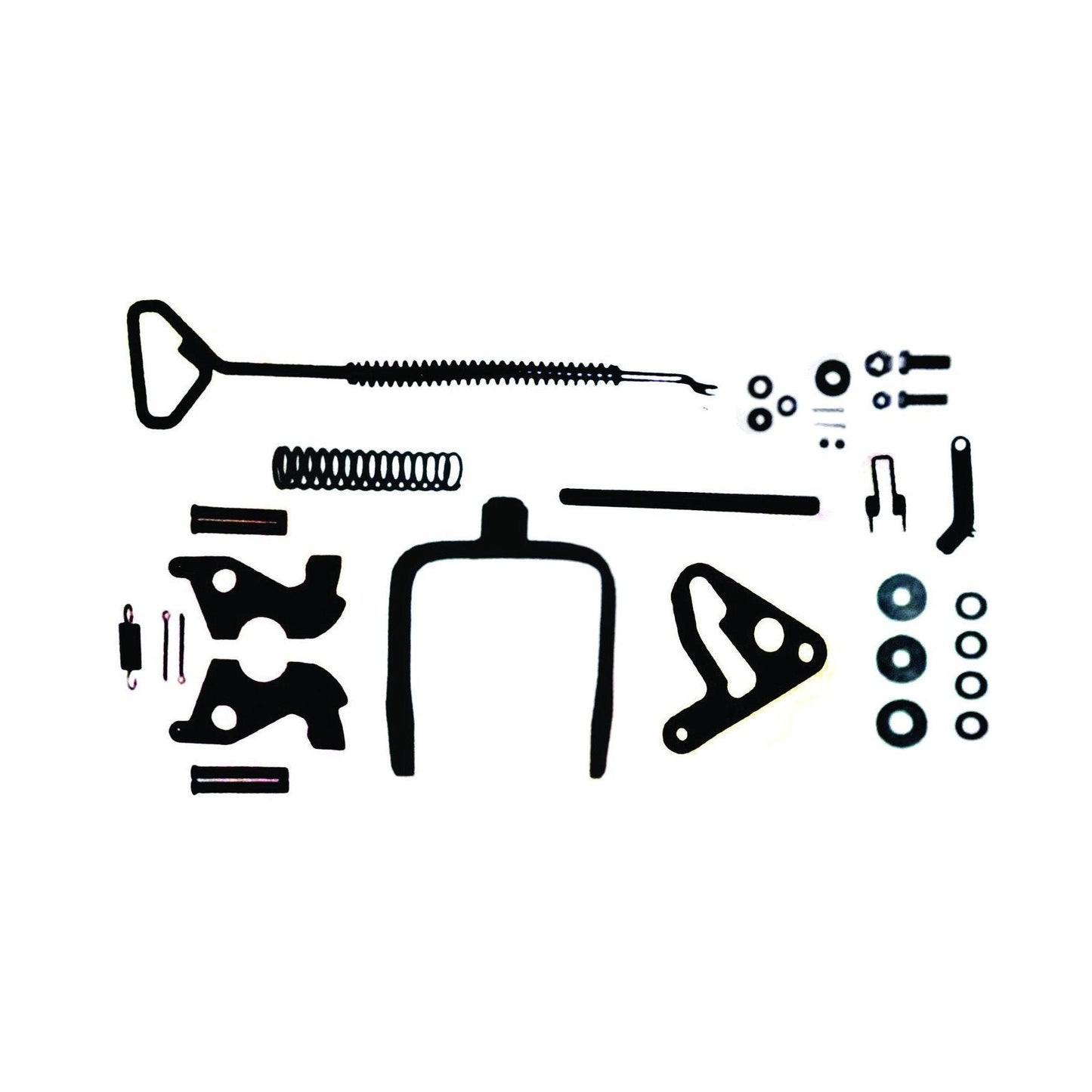

BOM (Bill of Materials):

  • 1 pcs x Yoke
  • 2 pcs x Retaining Ring, 1" Dia.
  • 1 pcs x Lock Jaw Set
  • 1 pcs x Spring, Extension
  • 1 pcs x Lock Nut, .75"-16 GR C
  • 1 pcs x Washer, .81" I.D. x 1.47" O.D.
  • 1 pcs x Washer, Rubber, 1.50" O.D. x .75" I.D.
  • 1 pcs x Tag, Lock Adjustment
  • 1 pcs x Yoke Shaft
  • 1 pcs x Spring, Compression
  • 2 pcs x Pin, Lock, Standard,
  • 1 pcs x Spring, Torsion
  • 1 pcs x HHCS, .50"-20 x 1.75" GR 5
  • 2 pcs x Washer, .56" I.D. x 1.75" O.D.
  • 1 pcs x Roller, .52" I.D. x 1" O.D. x .38" Long
  • 1 pcs x HHCS, .63"-18 x 1.75" GR 8
  • 2 pcs x Washer, .66" I.D. x 2.63" O.D.
  • 1 pcs x Roller, .66" I.D. x 1" O.D. x .38" Long
  • 1 pcs x Cam Plate, Left-Hand
  • 1 pcs x Cam Plate, Right-Hand
  • 2 pcs x Lock Nut, .50"-20 GR C
  • 1 pcs x Release Handle for both Left- and Right-Hand
  • 1 pcs x Spring, Manual Release
  • 1 pcs x Washer, .53" I.D. x 1.06" O.D.
  • 1 pcs x Pin, Cotter, .13" x 1.25" Long
  • 1 pcs x Washer, .56" I.D. x 1.38" O.D.

Cross-References

  • Saf-Holland: RK-351-A-02

Dimensions

Dimension Not Available.
