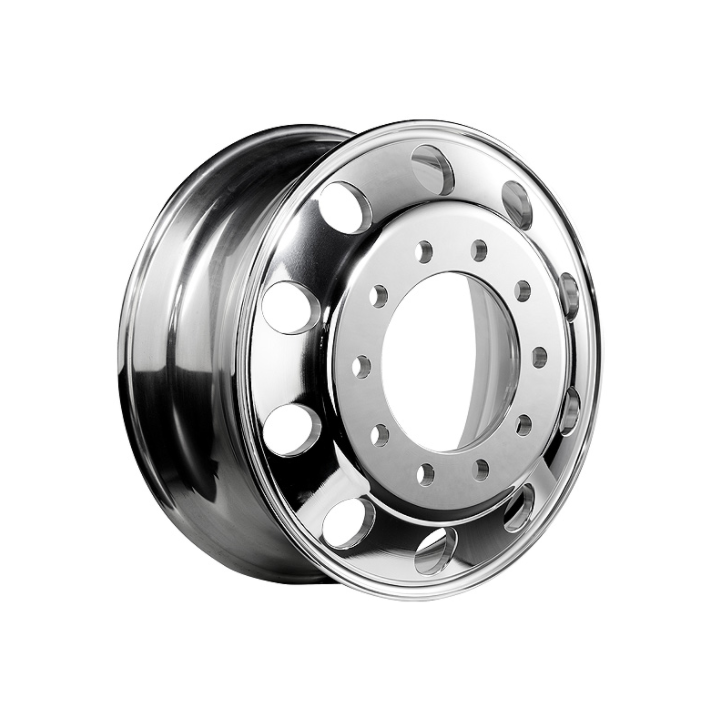

22.5" x 8.25" Alcoa Style forged Aluminum Wheel Hub Piloted 10 Hand Holes

22.5" x 8.25" Alcoa Style forged Aluminum Wheel Hub Piloted 10 Hand Holes

Fortpro

$274.19 USD
$274.19 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F286440

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

The latest technologies are used in Fortpro's manufacturing equipment, which also passed the third-party standard certification. Customers can trust our quality.

Aluminum wheels are lighter than steel and cast aluminum wheels. Forged wheels are stronger than cast aluminum wheels. That is why we can entirely recommend Fortpro Aluminum wheels.

Specifications

Dimensions:

  • Diameter: 22.5 in
  • Width: 8.25 in

Offset:

  • Outset: 167.9 mm
  • Inset: 147.2 mm

Bolt Hole (mm):

  • PCD: 285.75
  • No: 10
  • Dia 26

Hub:

  • Dia: 220.20
  • Thic: 20.7

Max Loading: 7400 lbs



     TIRE SIZE(1) APPROVED RIM CONTOURS(2)
    255/70R 22.5 7.50, 8.25
    265/75 ★ 22.5 7.50, 8.25
    11 ★ 22.5 7.50, 8.25
    275/80R 22.5 7.50, 8.25
    295/75 ★ 22.5 8.25, 9.00
    305/70R 22.5 8.25, 9.00
    12 ★ 22.5 8.25, 9.00
    12.5 ★ 22.5 8.25, 9.00
    12.75 ★ 22.5 8.25, 9.00
    315/80R22.5 8.25, 9.00, 9.75



    (1) A ★ denotes both radial and bias tires. An R indicates radial tires only.

    (2) SDC denotes semi-drop center rims. Note: For tire sizes not shown, consult the Tire Manufacturer for approved rim contours.

    Cross-References

    Check Description & Specifications

    Dimensions

    Dimension Not Available.
