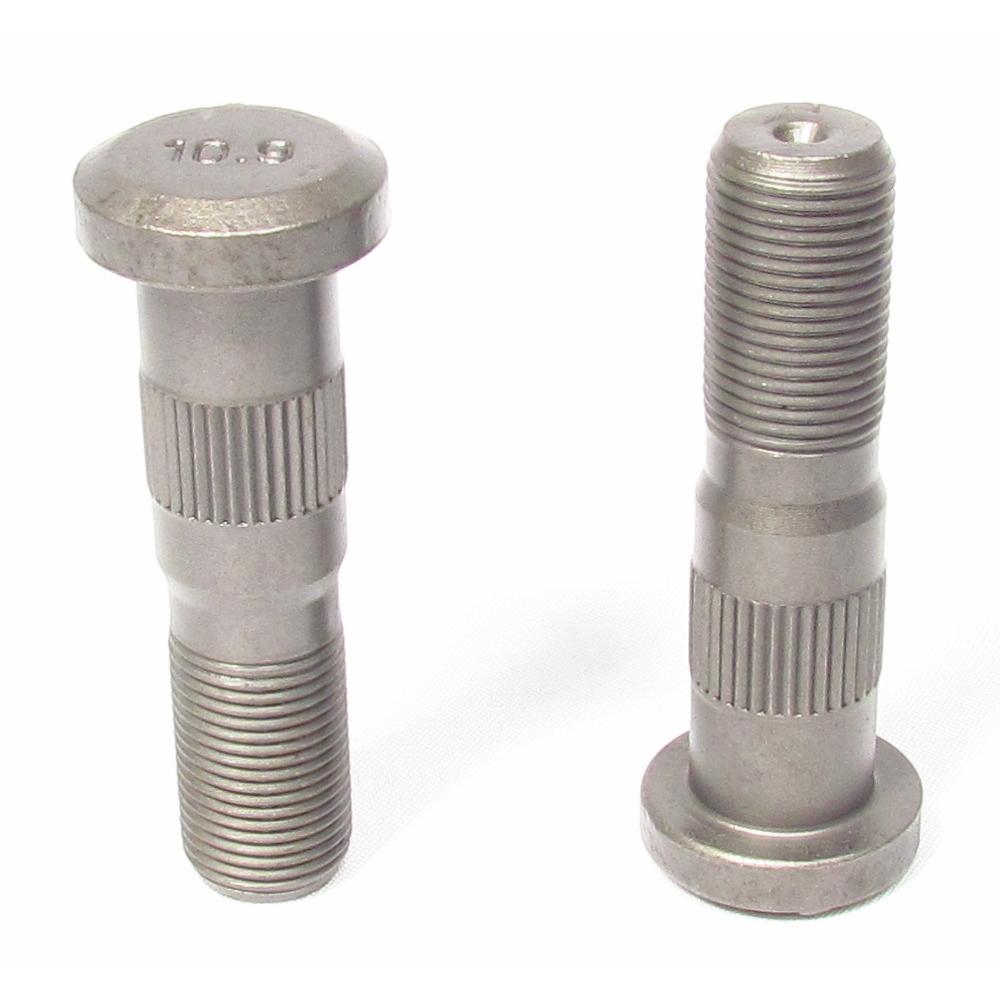

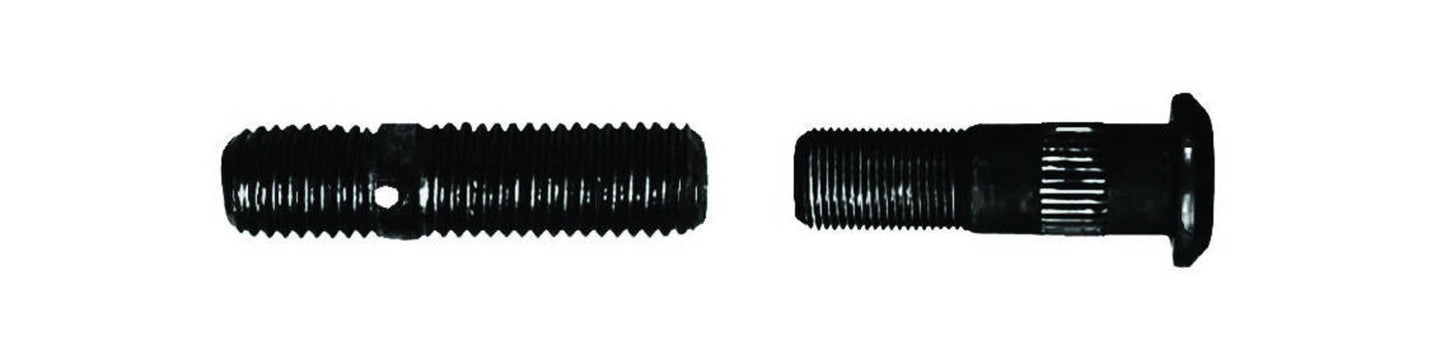

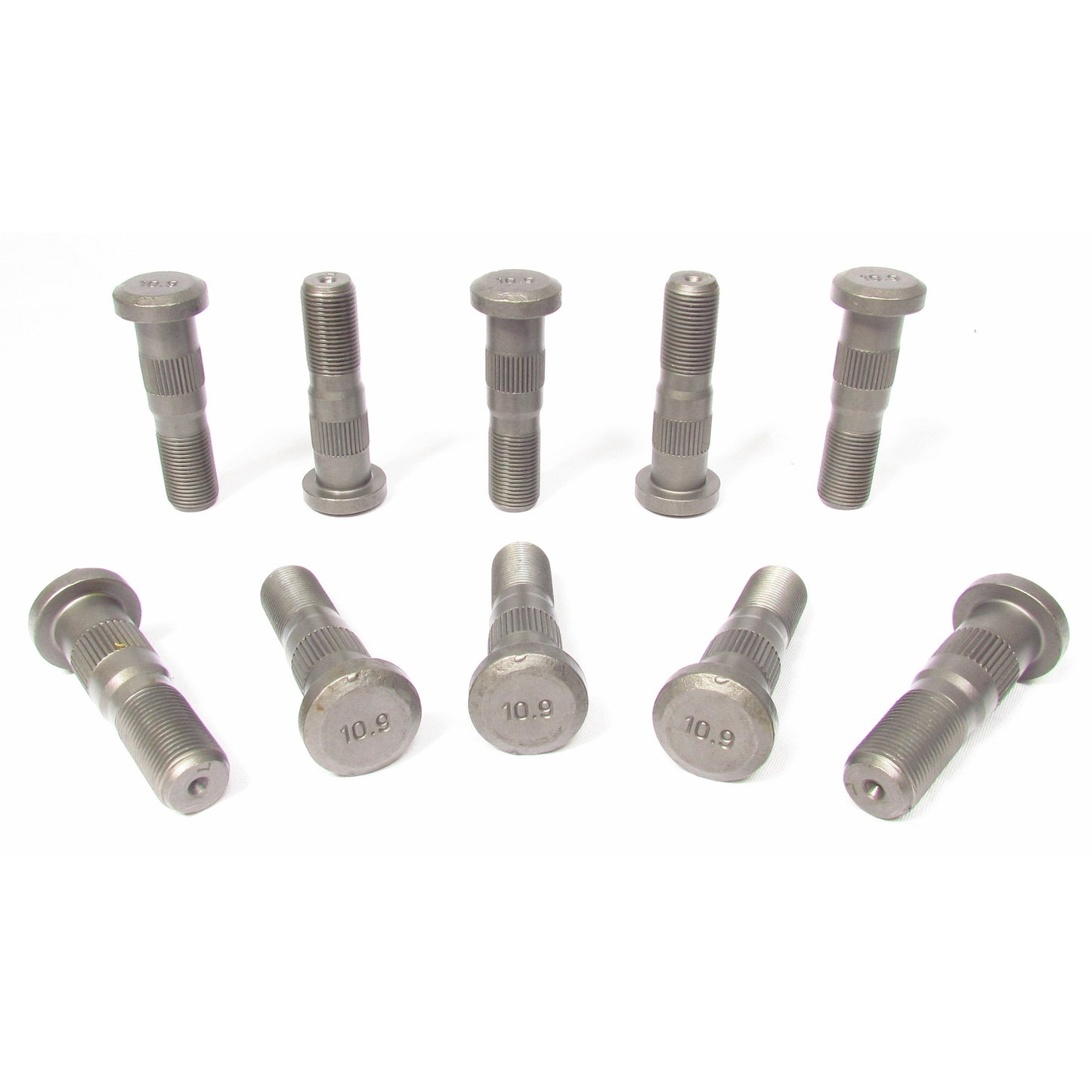

Serrated Drive Wheel Studs 3/4"-16 THD 0.785" BD x 2 31/32" Replaces E8947L, 13-1122L

Serrated Drive Wheel Studs 3/4"-16 THD 0.785" BD x 2 31/32" Replaces E8947L, 13-1122L

Fortpro

Regular price $2.50 USD
Regular price Sale price $2.50 USD
Sale Sold out
Shipping calculated at checkout.

SKU: SKU:F286681L

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286681L are high-performance wheel studs that offer exceptional, reliable fastening in demanding automotive applications. With their serrated design, rugged construction, and superior quality, these wheel studs deliver safety and performance on every trip.

Specifications

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8947L, E-8947-L
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4"-16 UNF-2A
  • Body Length (E): 1.40"
  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 31/32 "
  • Head Diameter (F): 1.28"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: LH (Left Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.16"
  • Serration: Serrated
  • Serration Length (D): 0.38"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016045L

Dimensions

Dimension Not Available.
