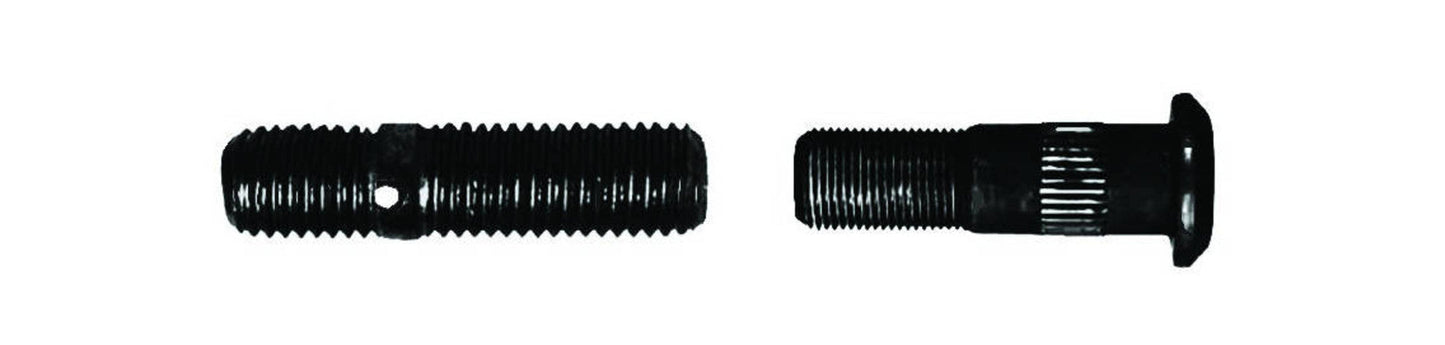

• F286682R | E8949R WHEEL STUD 13-1585R
  • F286682R | E8949R WHEEL STUD 13-1585R
  • F286682R | E8949R WHEEL STUD 13-1585R
1 3

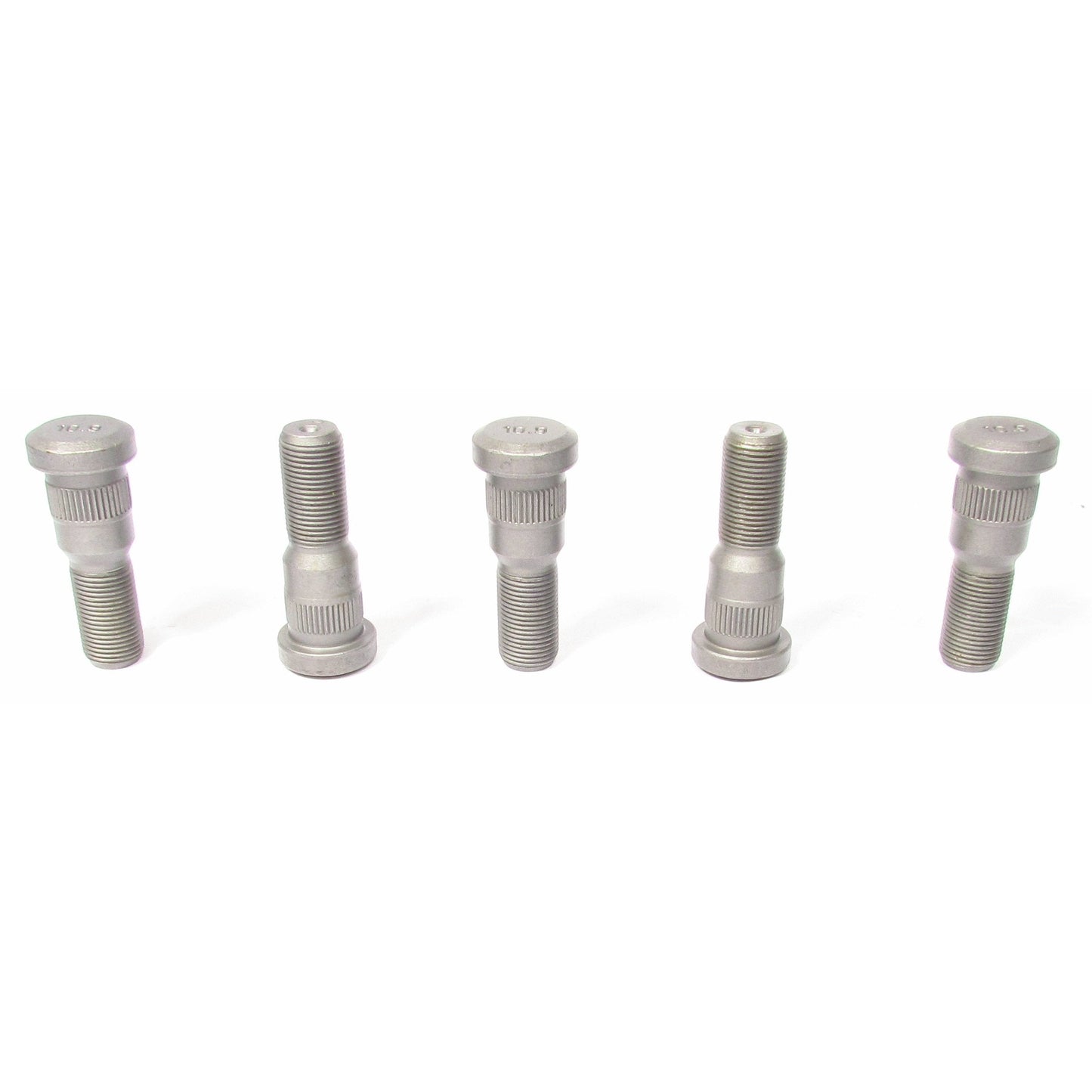

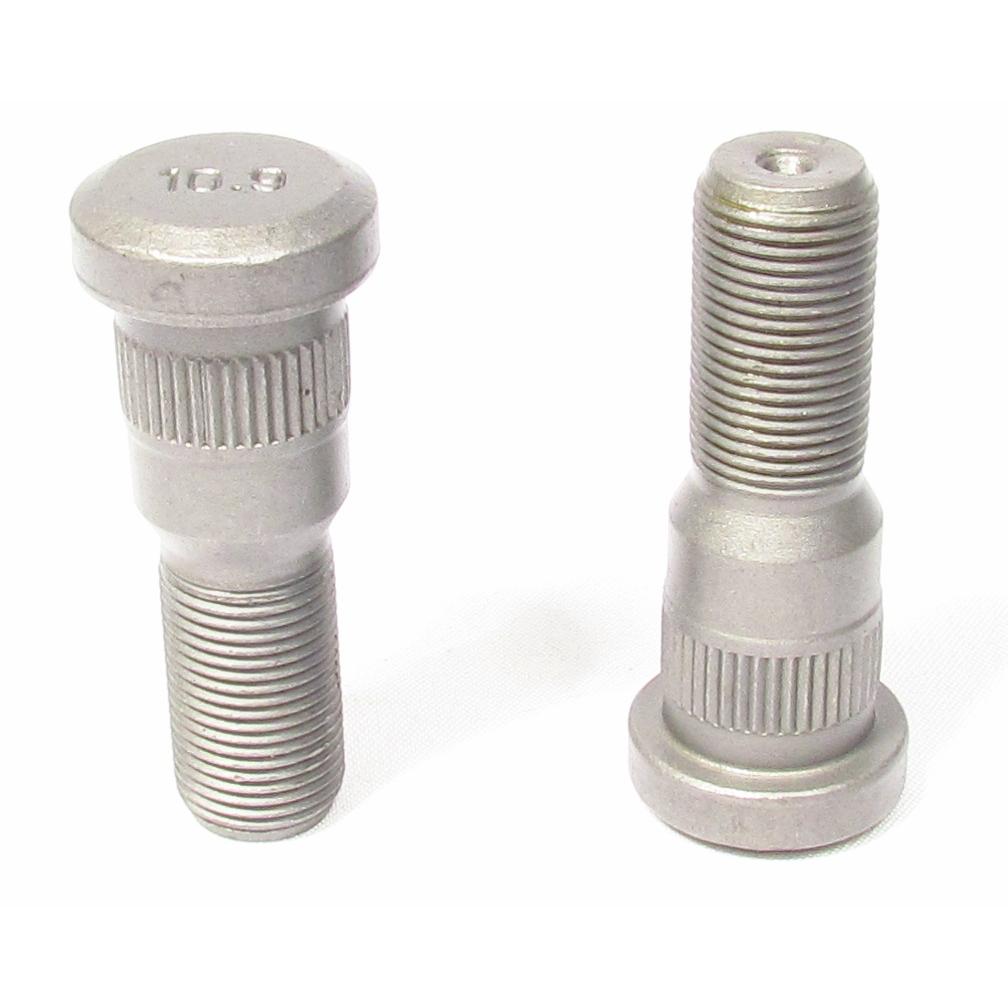

Serrated Drive Wheel Studs 3/4"-16 THD 0,900" BD x 2 19/32" Replaces E8949R, 13-1585R

Serrated Drive Wheel Studs 3/4"-16 THD 0,900" BD x 2 19/32" Replaces E8949R, 13-1585R

Fortpro

$3.38 USD
$3.38 USD
Sale Sold out
Shipping calculated at checkout.

SKU: F286682R

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Fortpro Serrated Drive Wheel Studs F286682R are the reliable choice for securing your wheels. Constructed with high-strength steel, they offer a long-lasting hold. With a 3/4"-16 metric thread and a splined design, they ensure a tight connection and minimize the risk of loosening or unwanted vibration.

Specifications

  • Brand: Fortpro
  • Part Type: Wheel Stud / Right Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8949R, E-8949-R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4-16 UNF-2A
  • Body Length (E): 0.98"
  • Body Diameter (G): 0.912" /0.904"
  • Length from Under Head (B): 2 19/32"
  • Head Diameter (F): 1.25"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.30"
  • Serration: Serrated
  • Serration Length (D): 0.39"
  • Serration Diameter: 0.950"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 201.6097R

Dimensions

Dimension Not Available.
