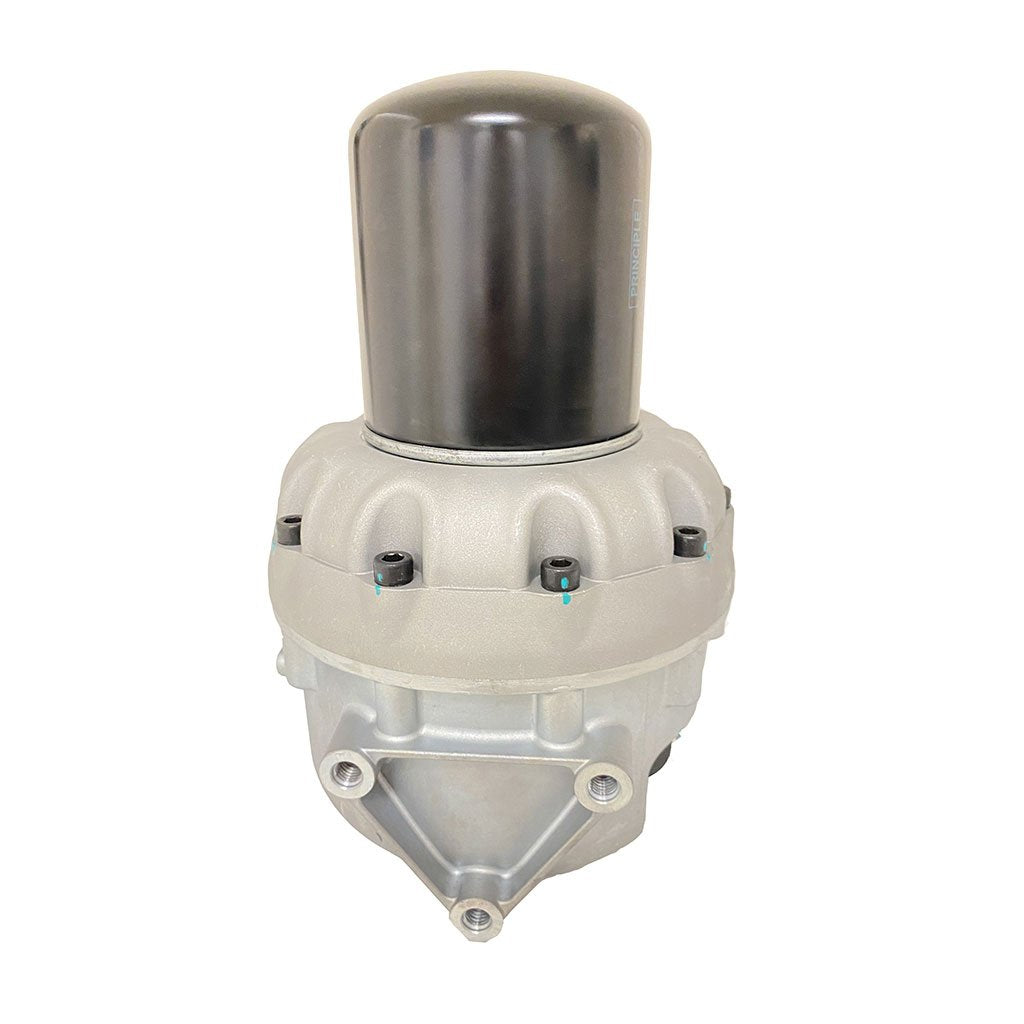

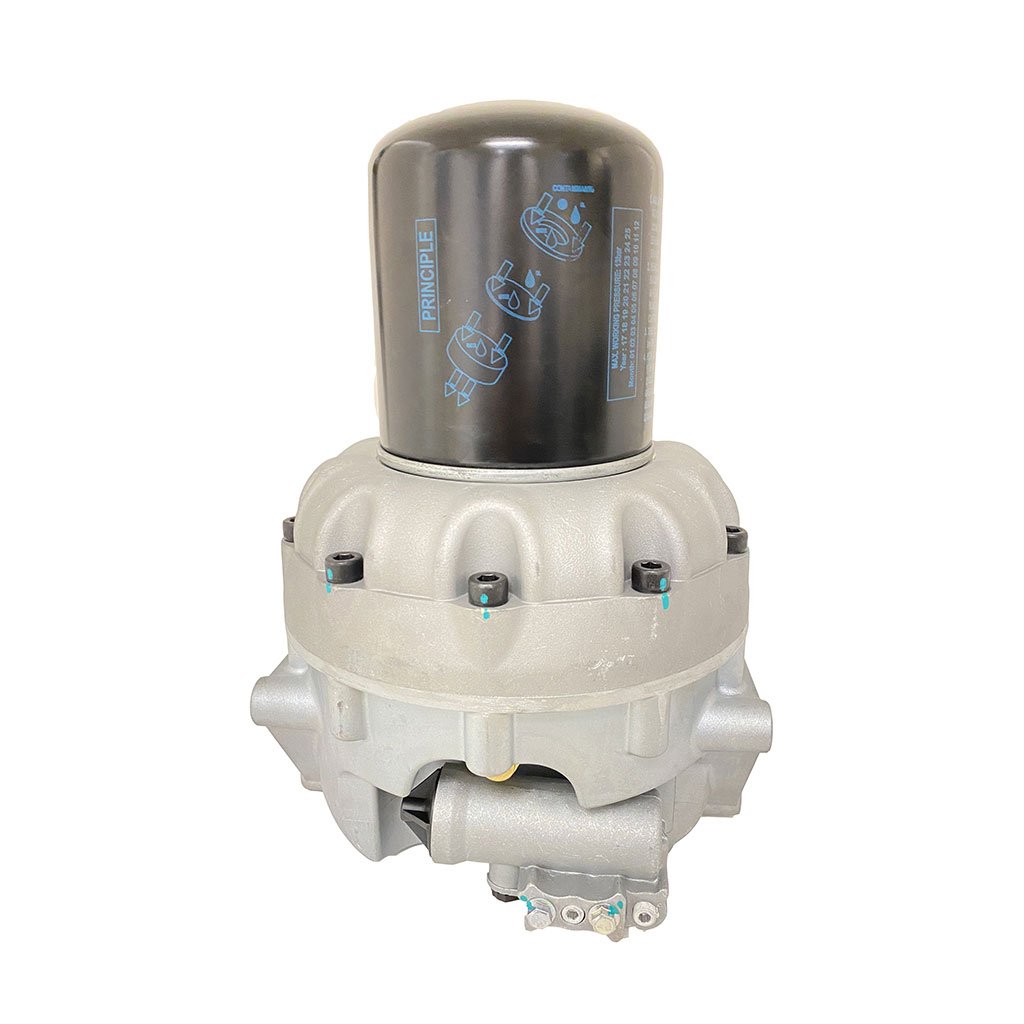

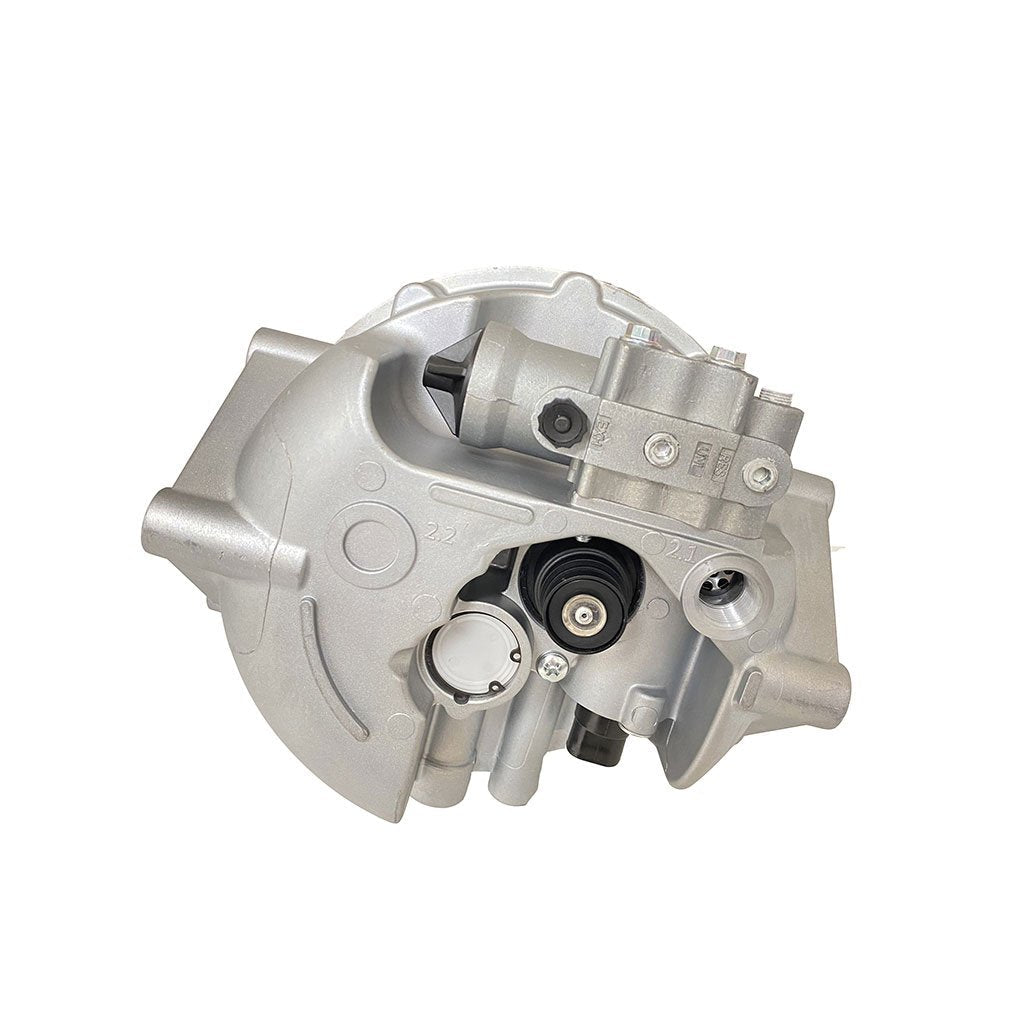

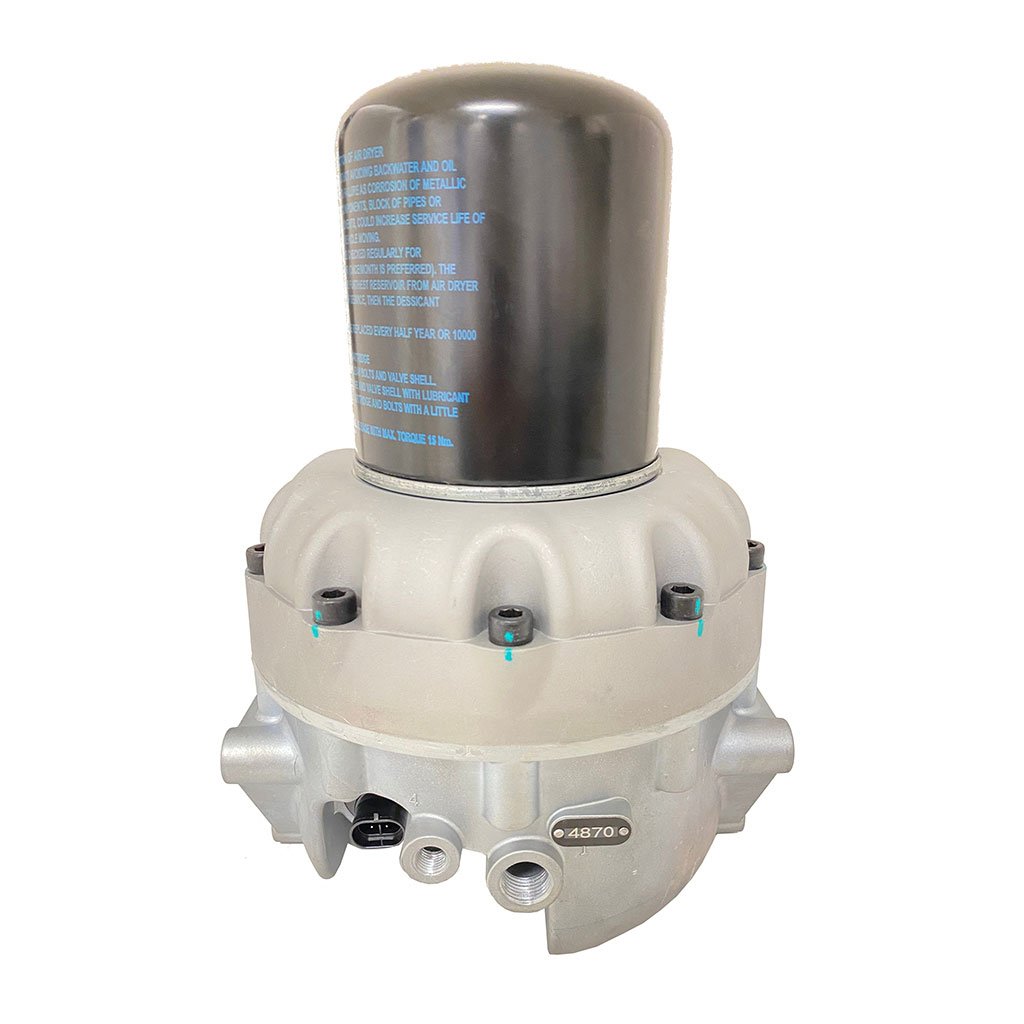

Air Dryer System Saver 1200 Style Replaces Wabco Air Dryer 4324711010

Air Dryer System Saver 1200 Style Replaces Wabco Air Dryer 4324711010

Fortpro

Regular price $259.89 USD
Regular price Sale price $259.89 USD
Sale Sold out
Shipping calculated at checkout.

SKU: SKU:F224870

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

IF YOU'RE IN THE DALLAS AREA AND LOOKING FOR PROFESSIONAL INSTALLATION, TRUCK REPAIR & FLEET SERVICES, WE'VE GOT YOU COVERED! VISIT US AT OUR CONVENIENT LOCATION:
View full details
APPROVALS REGARDLESS OF CREDIT*
Apply Now

*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.

American First Finance

Product Data Sheet

Description

Fortpro Air Dryer System Saver 1200 style is a high-quality air dryer system designed to remove moisture and contaminants from the air brake system of heavy-duty trucks, buses, and other commercial vehicles. This system saver helps to prevent corrosion and improve the reliability of the braking system by ensuring clean, dry air is delivered to the brake components. It is engineered to provide consistent performance and long service life, making it a reliable choice for vehicle operators looking to maintain the safety and efficiency of their air brake system.

Specifications

  • Part Type: Air Dryer
  • Technical Specification: OE specification
  • Cartridge type: Desiccant Cartridge and Oil separator
  • Comments: Turbo-cut-off valve installed
  • Cut-out pressure: 8.7 to 9.4 bar
  • Max. operating pressure: 10.0 bar
  • Opening pressure: 12.8 bar
  • Port thread 21: 1/2" - 14 NPTF
  • Port thread 4/23: 1/4" - 18 NPTF
  • Temperature range: -40°C to +80°C
  • Voltage: 12 V
  • Calculated Volume (dm³): 20.95
  • GTIN: 4057875173786
  • Size (mm x mm x mm): 373 x 237 x 237
  • UPC: 193133437956
  • Weight (kg): 9.2
  • Weight (lb): 20.28

Cross-References

Check Description & Specifications

Dimensions

Dimension Not Available.
