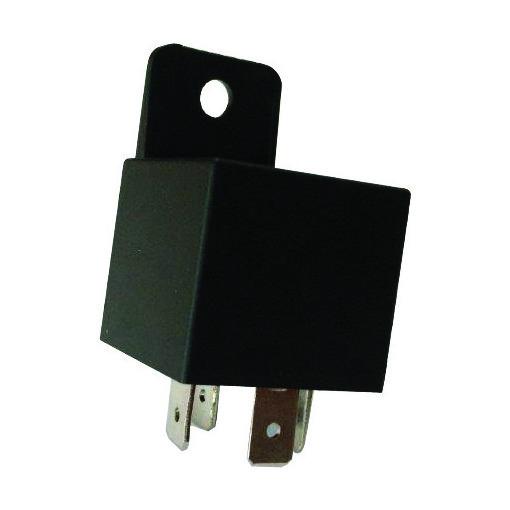

Relay Switch 12V 4 Pole 30 Amp Replaces 965400001
Relay Switch 12V 4 Pole 30 Amp Replaces 965400001
SKU: SKU:F235445
Inventory: More than 50 in Stock
Shipping: Calculated at Checkout
Shipping Policy
Shipping Policy
In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.
For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.
Return Policy
Return Policy
If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.
To start a return, use our Contact Form.
Share
*Subject to approval and verification. Approval is possible without a FICO® Score, but credit may be checked. Loans originated by FinWise Bank, a Utah-chartered bank located in Murray, Utah, Member FDIC.
Product Data Sheet
Description
Specifications
- Nominal Voltage: 12V
- Rated Continuous Load: 30A at 85° C
- Ambient Temperature: -40° C...+85° C
- Operating / Drop out Voltage: < 7.2V / > 1.2V
- Max. Coil Voltage: 18V
- Suppression: None
- Mechanical Cycles: 10,000,000
- Vibration: 20 - 200HZ, 5 g, no contact openings 10µs
- Terminals: 30, 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn 87: ISO 8092 6.3 x 0.8, CuZn
